QRPGuys 40m-10m Mini UnUnTenna

QRPGuys 40m-10m Mini UnUnTenna – $30









This product is sold only on this website. We do not sell on AliExpress, eBay, Walmart, or Amazon, even if it uses our name and logo. Any you see there are counterfeit and contain very substandard toroids.

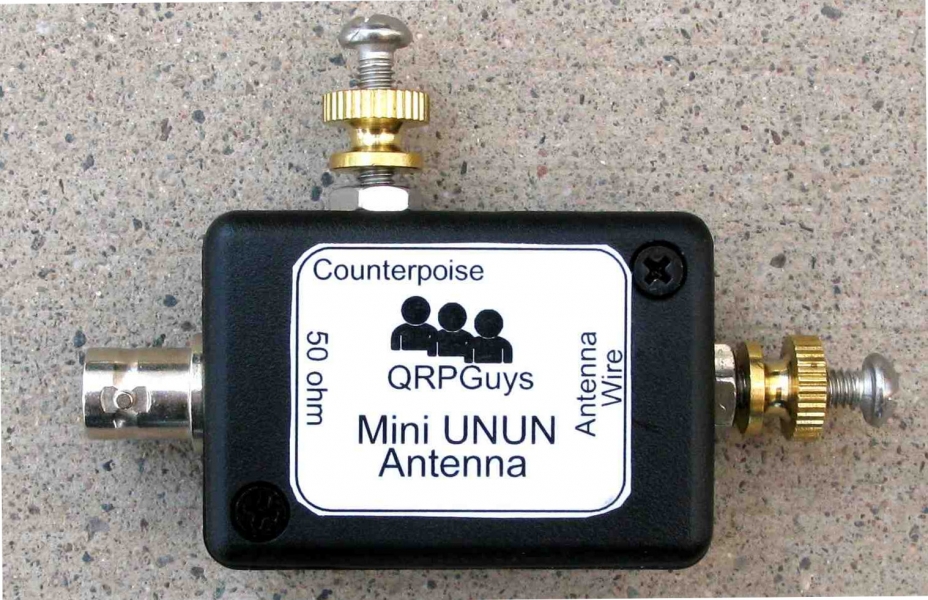

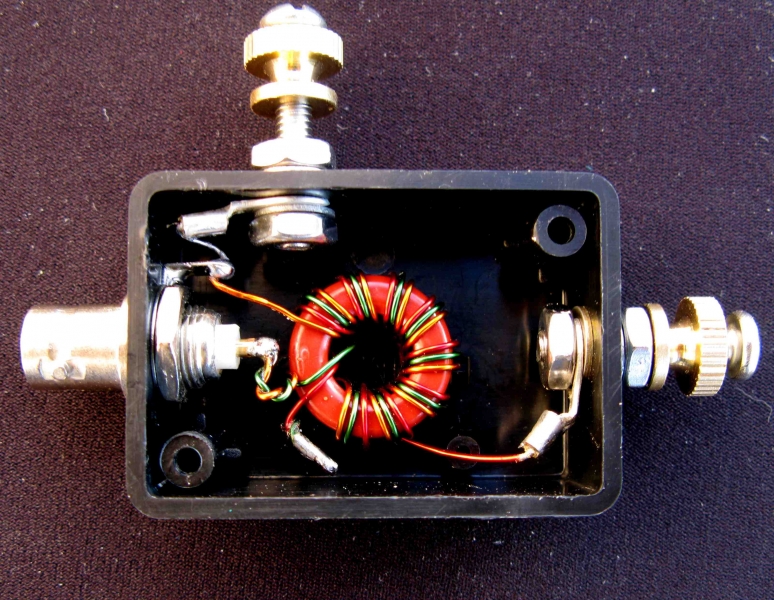

The QRPGuys 40m-10m UnUnTenna is a highly portable, lightweight, wire antenna for backyard or SOTA use. It uses an integral 9:1 voltage balun that matches your unbalanced 50 ohm impedance input to a 450 ohm impedance unbalanced long wire. It will easily handle 10 watts. This antenna will require the use of a tuner. The autotuners in the Elecraft KX-2, KX-3, Icom IC-703, and our manual Multi Z Tuner have all been tested and work very well. The antenna has optimum efficiency at 20m and will be an S unit less in performance at the 40m and 10m ends. You use a non-resonate length of wire for the driven element, typically 41′, 35.5′, 29′, or 17′ and optionally a 1/4 λ wire for a counterpoise, 35′ or 16′ length counterpoise works well for all bands. We provide all the components except the antenna wire and counterpoise wire. You use what you have available. We recommend anything from 20awg to 26awg.  We provide all captive brass and stainless steel hardware for the antenna and counterpoise connections. There is a female BNC for connection to your tuner. Case size is 2.00″ x 1.38″ (50.8mm x 35mm). Weight is 1.5 oz. (42.5g). On a difficulty scale of 1 to 5, 5 being the most difficult, this is rated at 2 or 3 depending on your experience.



 Click here for assembly manual
