Center Loaded Vertical Antenna kit

 QRPGuys Backpack Center Loaded Vertical Antenna kit – $60

We are closed for our annual Summer shutdown. We will be open again in early August when you see the PayPal buttons re-appear. Technical support via email is the only service available until then.

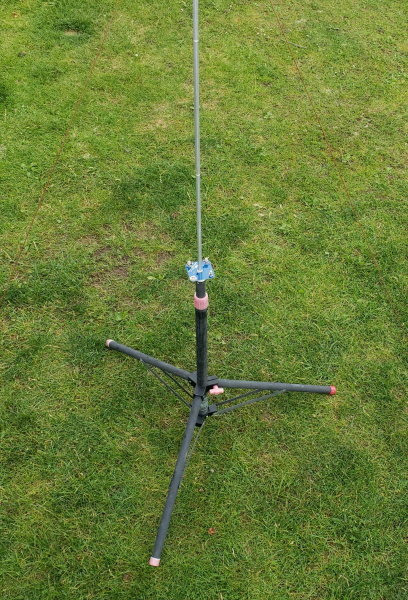

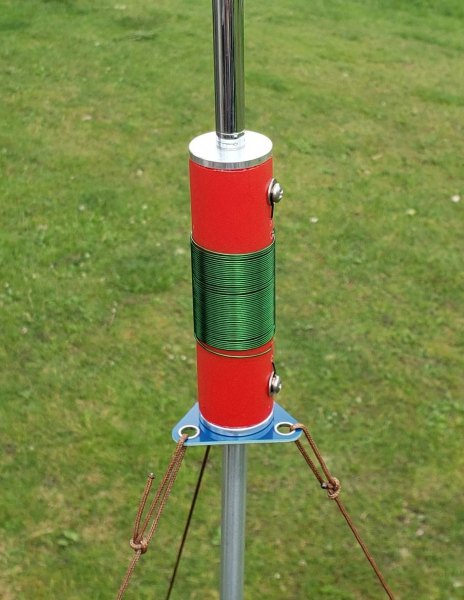

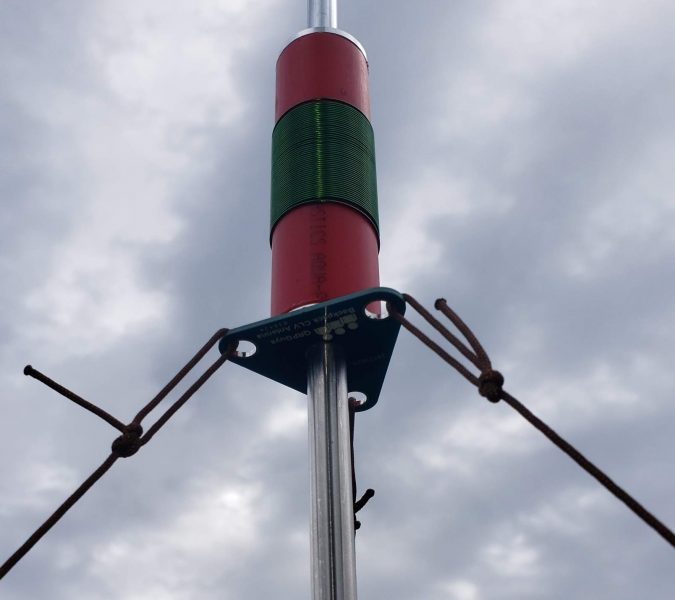

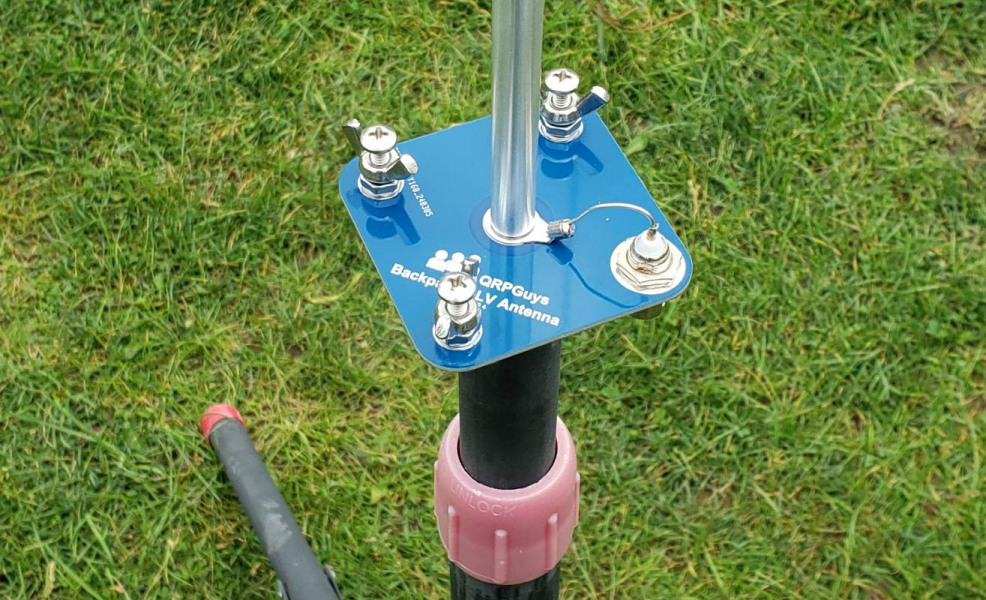

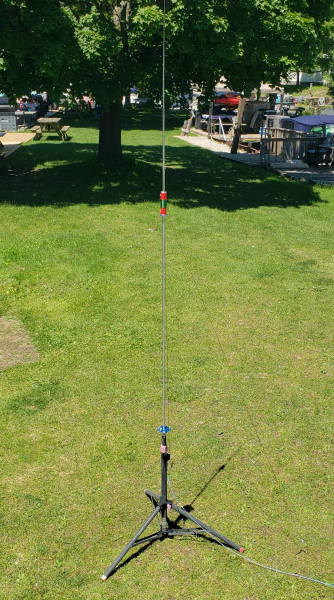

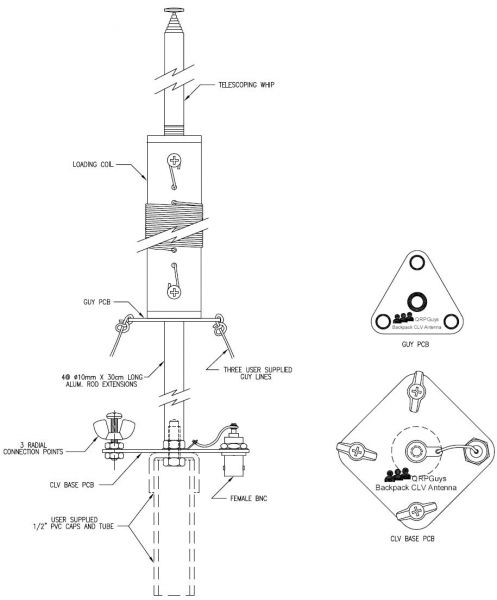

The QRPGuys CLV Antenna kit is center loaded vertical antenna resonant on 40m and can be used up to 30MHz with a tuner. It can be set up in minimal time with threaded sections, has a variety of mounting options from a simple spike to a tripod alternative, and breaks down to 12” for easy storage in the 2″x4″x12″ box you received the kit in. The antenna base provides for a simple counterpoise to a more extensive radial array if desired. A female BNC is provided for connection to your coax. There are provisions for light guying in adverse conditions for a stable platform.

The assembly tools required are, an electric drill, 3/32” drill bit, 6-32 tap, phillips screwdriver, pliers, soldering iron, solder. It can easily be assembled in about an hour. On a difficulty scale of 1 to 5, 5 being the most difficult, this is rated at 2.


Click here for the assembly manual
