QRPGuys Wire Antenna Trap Kit

QRPGuys Wire Antenna Trap Kit – $15



Due to the interruptions of parts delivery from COVID-19 repercussions, we are having to suspend taking orders temporarily. All orders that are in process will be filled and mailed to the best of our ability.





Your PayPal receipt is your confirmation that we have received your order. Stock availability and shipping volume can delay shipping.

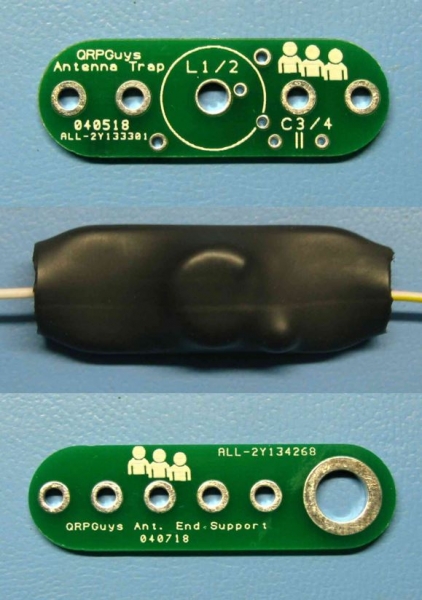

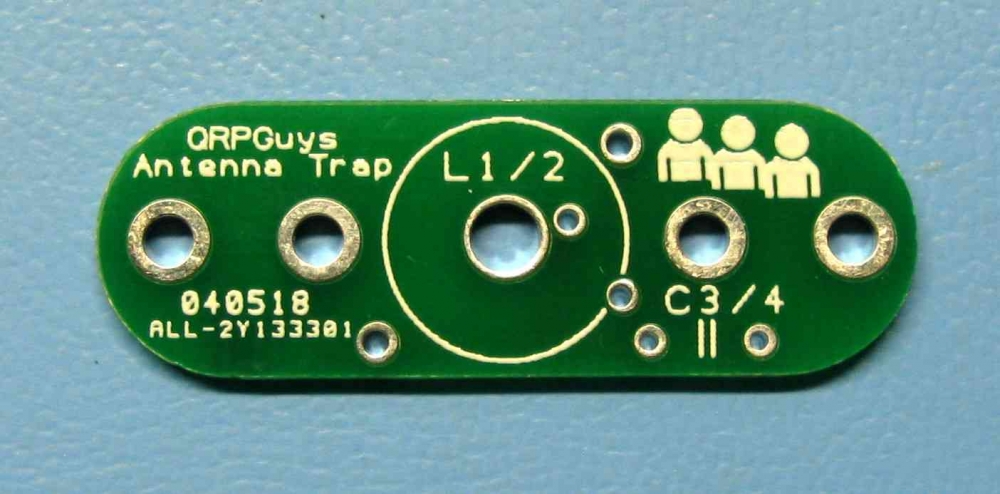

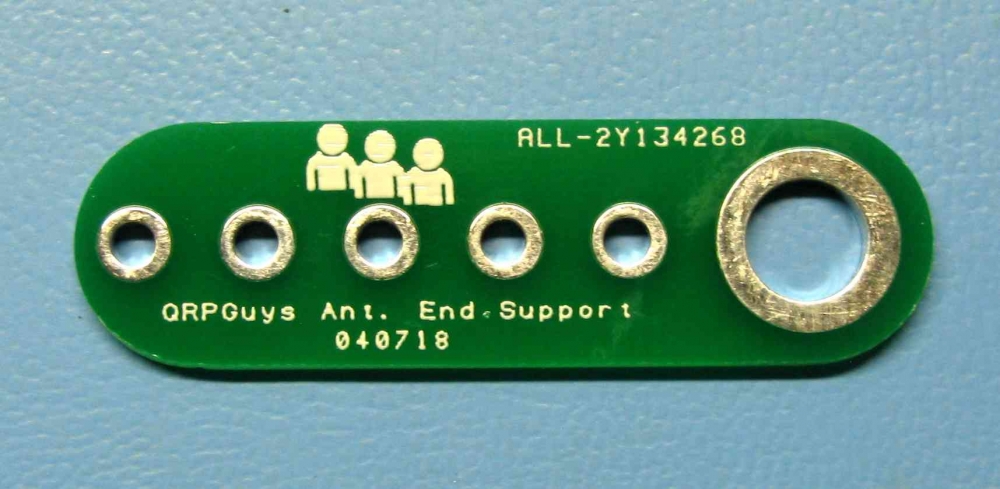

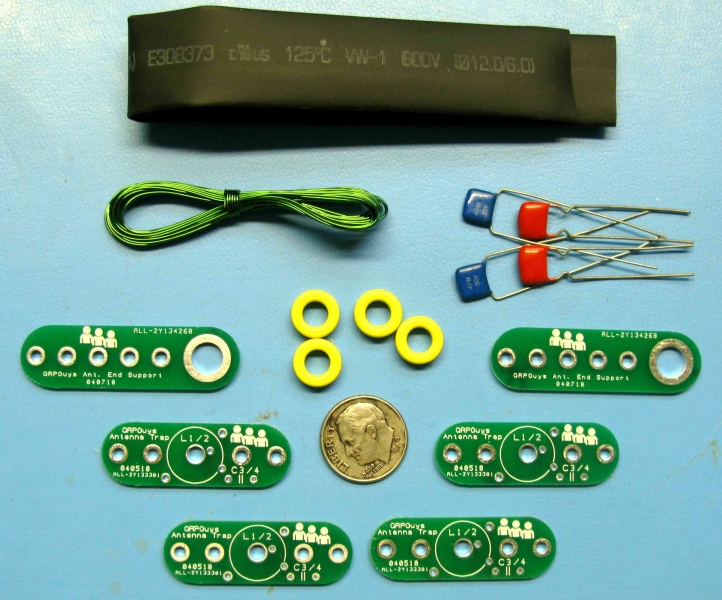

Due to customer requests, QRPGuys is offering a universal lightweight wire trap kit for those who want to experiment with their own traps for wire antennas. The kit contains four trap pcbs, two antenna end connector pcb’s, four T37-6 toroids, two 68pF-500V capacitors, two 150pF-500V capacitors, 8′ of 26awg magnet wire, and enough 1/2″ poly shrink wrap to cover all four traps. These are the same parts we use in the antennas we have for sale. They are very lightweight, easy to assemble, rated for 20W, and use with 22-26awg stranded element wire.



Wire trap assembly instructions
