QRPGuys TCXO Frequency Standard/Reference

QRPGuys TCXO Frequency Standard/Reference – $25


Annual Summer Recharge. We will be closed for the month of August. At the end of the month, when you see the PayPal buttons appear, we will be taking orders and shipping. Please delay any parts issues until we return. Our price sheet can be seen here.

73’s, QRPGuys


Your PayPal receipt is your confirmation that we have received your order. Stock availability and shipping volume can delay shipping.

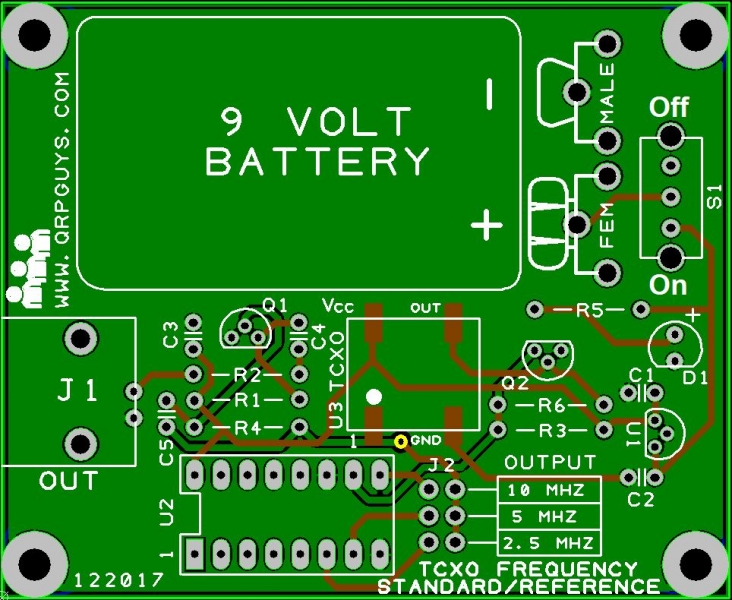

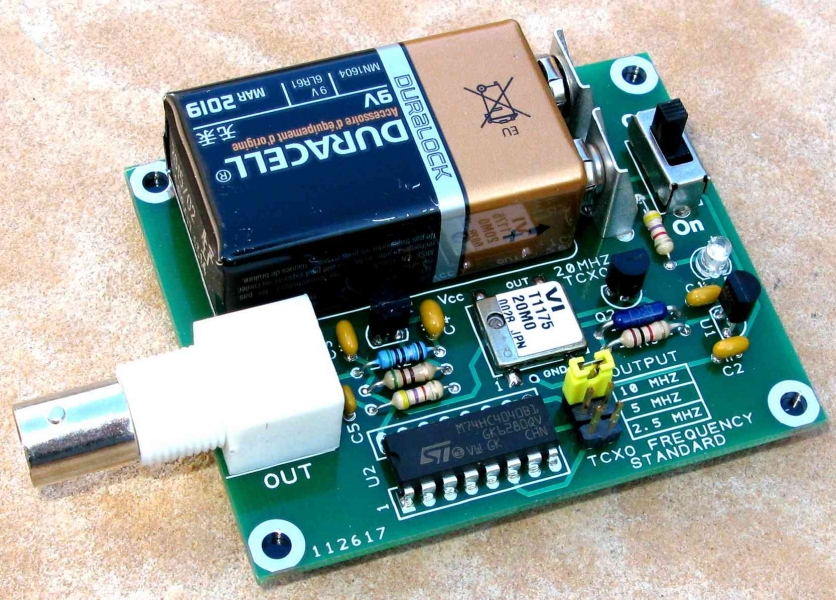

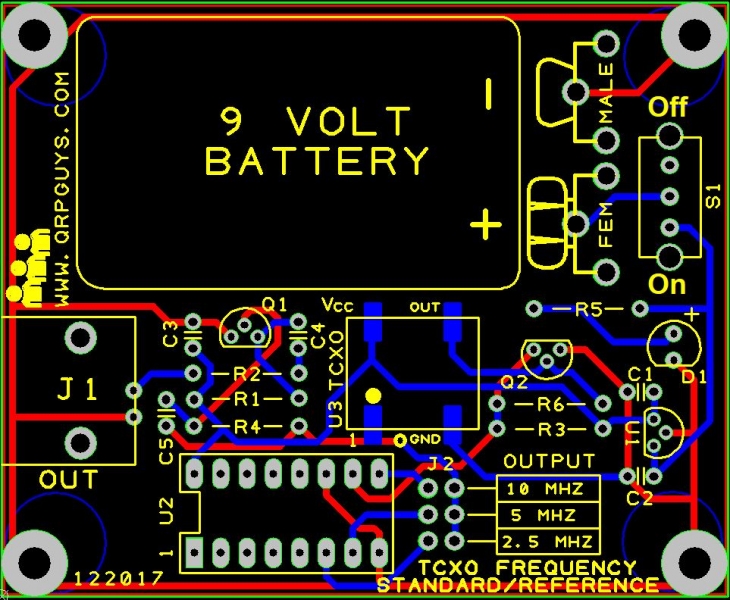

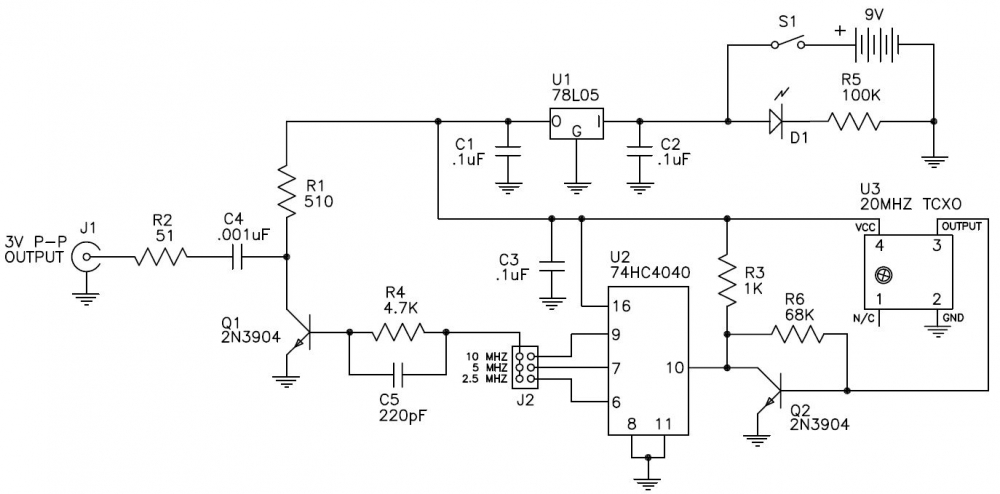

The QRPGuys TCXO (Temperature Compensated Crystal Oscillator) Frequency Standard/Reference is a handy self-contained frequency standard accurate to 2.5 ppm. The output frequency can be jumper set to 10, 5, or 2.5 MHz. The TCXO on the board  has a trimmer that you can set and calibrate to WWV. It is powered by a 9V battery on the board, with a female BNC connector for the ~ 3V p-p output. A welcome addition to your hamshack. On a difficulty scale of 1 to 5, 5 being the most difficult, this is rated at 2 or 3 depending on your experience. 9v battery not included.



 Click here for assembly manual
