μBITX JackAl Enhancement Board

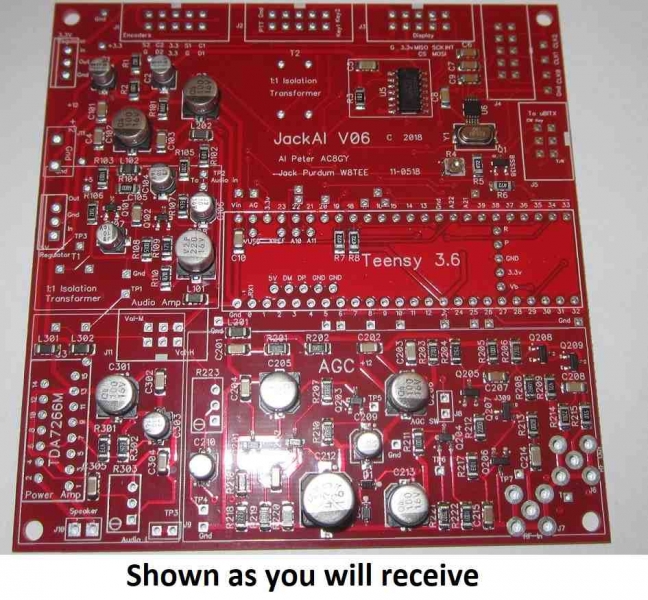

Pre-assembled SMD µBITX JackAl board – $50



This sale of this product is suspended until further notice, and do not have date for when it will be available.




Your PayPal receipt is your confirmation that we have received your order. Stock availability and shipping volume can delay shipping.



We are pleased to act as the selling agents for the Jack Purdum (W8TEE) and Al Peter (AC8GY) add on board (µBITX JackAl), to upgrade the popular µBITX.  The µBITX is the Ashhar Farhan, (VU2ESE) design of a general coverage HF SSB/CW transceiver kit.

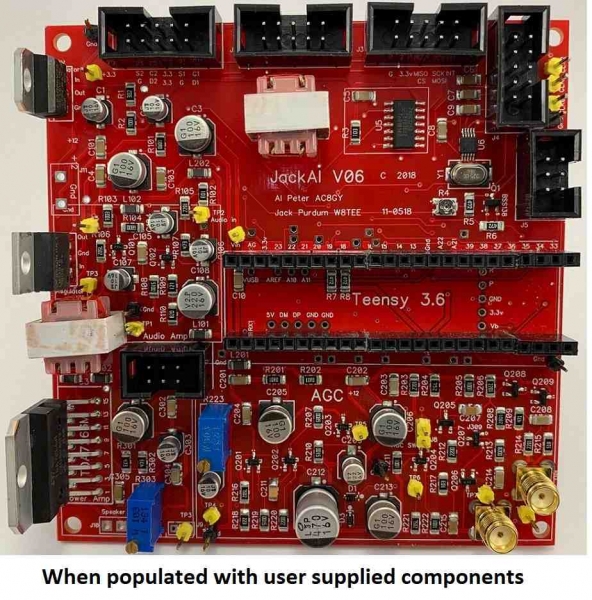

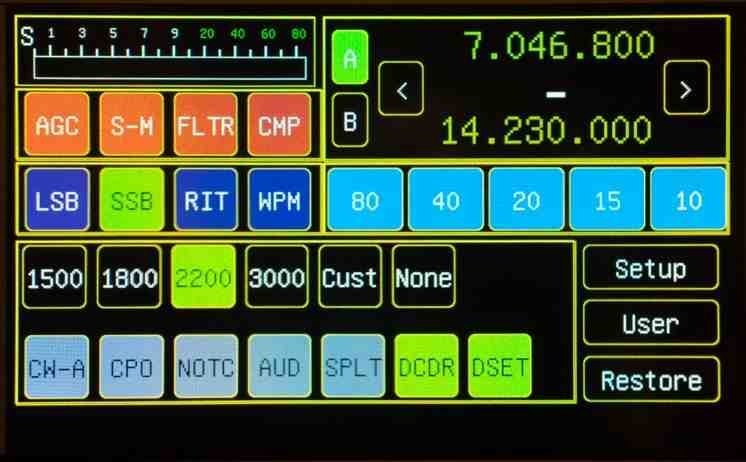

The µBITX JackAl add on board takes the µBITX to a new level of enhanced functionality, centered on a high-resolution touch screen TFT display. The µBITX JackAl board is all SMD pre-assembled, however the user has to supply the remainder of the parts, including micro-processor (Teensy 3.6), audio board, 5″ or 7″ TFT touch display, cables, connectors, and some discrete thru-mount parts. This kit is for experienced builders with at least intermediate experience (no SMDs need to be soldered).



Full description, specifications, complete instructions with BOM, additional parts required, and links to the software, which is Arduino IDE compatible, are available on the Ham Radio Designs website. Jack also has a (BagOfPartsWithPrices.doc) available for the additional parts needed.



For the latest files and group discussions join the io group:

https://groups.io/g/JackAl/topics





Any questions concerning sourcing components, construction, usage, and troubleshooting should be directed to the address above or Jack’s e-mail  jackw8tee@gmail.com
